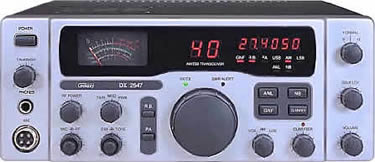

Galaxy
DX 2547
(Click
on the image for a larger view) |
General:
Frequency range 26.965 - 27.405 MHz (40 Channels), emission
modes AM/USB/LSB, frequency control phase lock loop (PLL)
synthesizer, frequency tolerance 0.01%, frequency stability
0.00%, operating temperature range -30°C to +50°C,
microphone dynamic PTT, 500 Ohms, antenna connector UHF;
SO239.
Transmitter: RF
power output AM : 20 watts (once tuned), RF transmit modes
AM/SSB, modulation high and low level class B, amplitude
modulation: AM and SSB -spurious emissions -60 dB, carrier
suppression -60 dB, audio frequency response 300 to 2500
Hz, antenna impedance 50 Ohms.
Output indicators: meter shows relative
signal strength, RF output power, SWR and AM modulation
level.
Receiver: Sensitivity
for 10dB S/N (AM/ SSB) < 0.5 mV / < 0.15 mV,
IF Frequency AM: 10.695 MHz 1st IF, 455 KHz 2nd IF, image
rejection -50 dB, adjacent channel selectivity -60 dB, RF
gain control 45 dB adjustable for optimum signal reception,
automatic gain control (AGC) figure of merit 100 mV for 10
dB change in audio output, squelch adjustable; threshold
less than 0.5 mV, noise blanker RF type, audio output power
2.5W @ 10% THD, audio frequency response 300 to 2500 Hz.
Built-in speaker 8 Ohms, 4 watts
Dimensions 4-3/4"H
x 11-1/4"W x 13-1/2"D
Input
voltage: (DC/AC Selectable) 13.8V DC / 110V
AC 60Hz
Downloadable Owners Manual in PDF format - Download Now |
